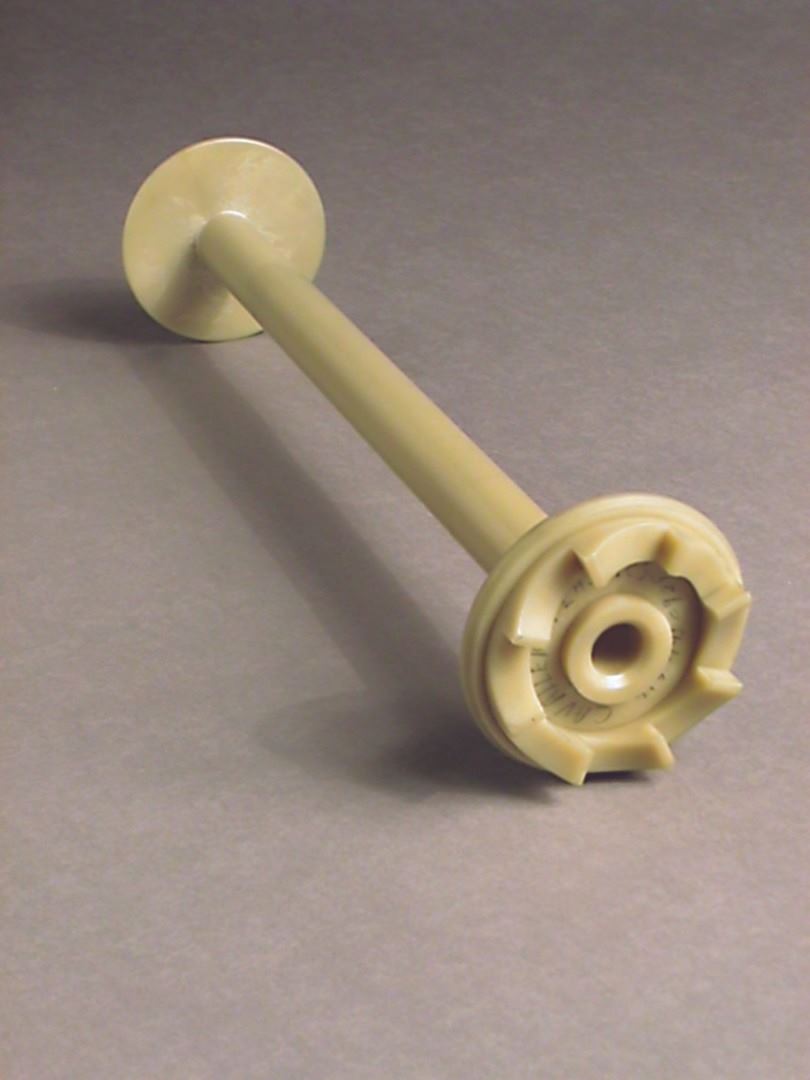

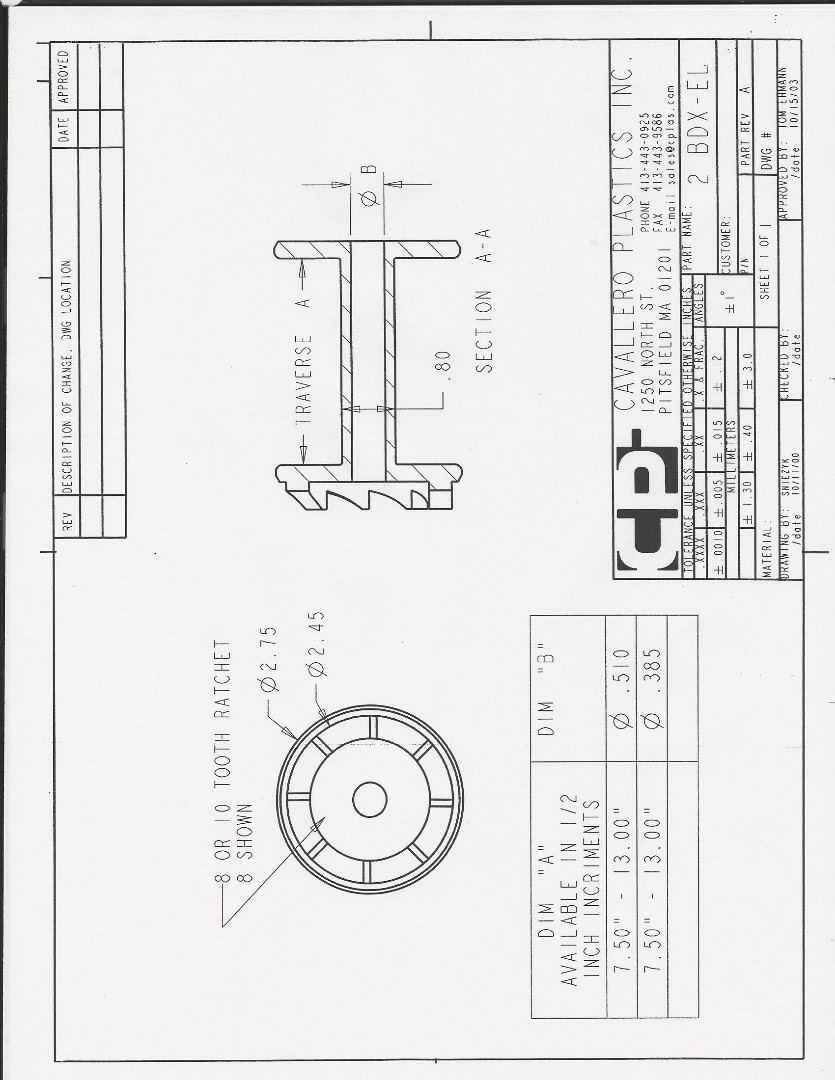

2 BDX-EL

• Equipment N E Butt/Wardwell

• Flange Dia. (in.) 2.75"

• Flange Dia. (mm) 69.85mm

• Traverse (in.) 7.5" to 13" in .5" increments

• Traverse (mm) 190.50mm to 330.20mm in 12.7mm increments

• Barrel OD (in.) .810" typical, smooth

• Barrel OD (mm) 20.57mm typical, smooth

• Bore Size (in.) .385" or .510"

• Bore Size (mm) 9.78mm or 12.95mm

• Drive Type 8 tooth ratchet
