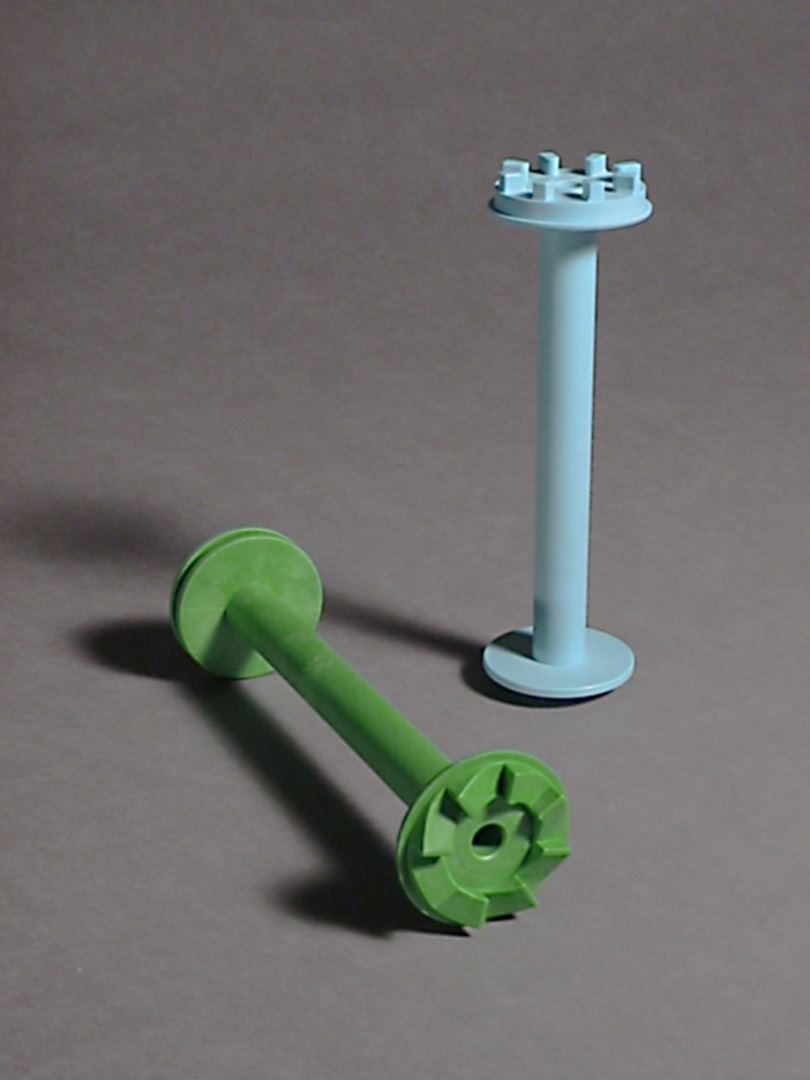

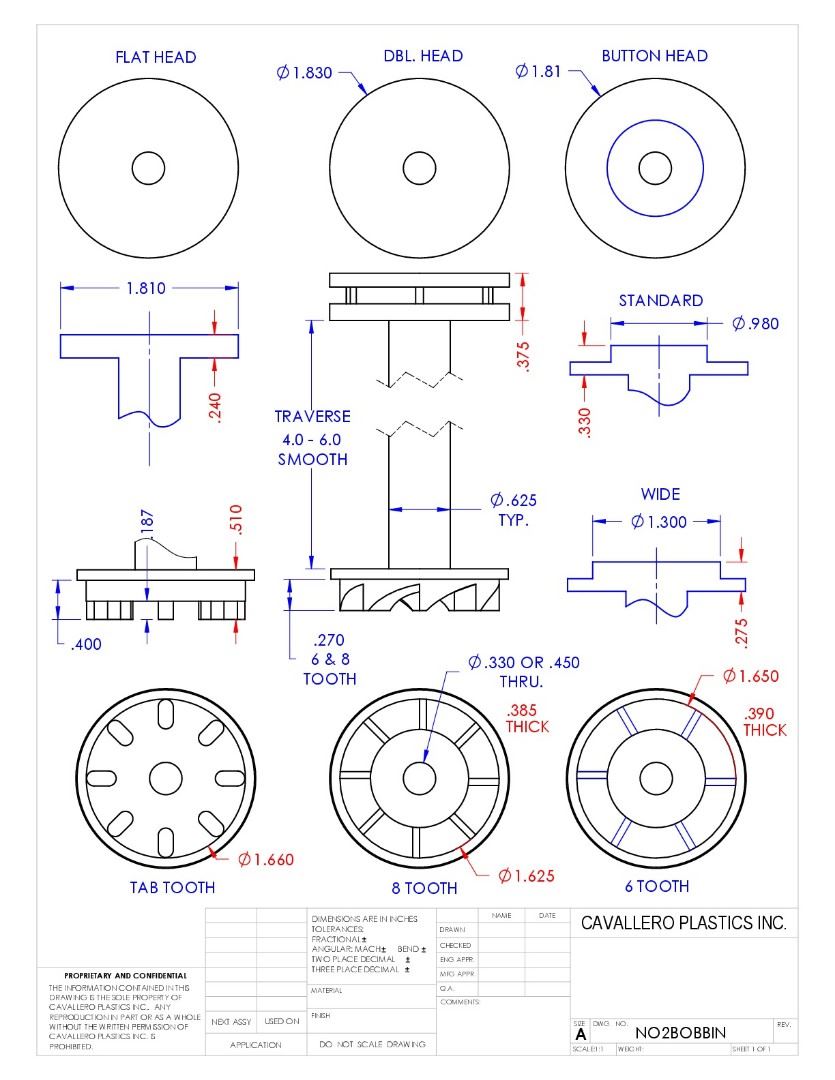

No. 2 Bobbin

• Equipment N E Butt/Wardwell

• Flange Dia. (in.) 1.81" Button or Flat Head, 1.83" Double Head

• Flange Dia. (mm) 45.97mm Button or Flat Head, 46.84mm Double Head

• Traverse (in.) 4" to 6"

• Traverse (mm) 101.60mm to 152.40mm

• Barrel OD (in.) Smooth .625" typical

• Barrel OD (mm) Smooth 15.88mm typical

• Bore Size (in.) .330" & .450"

• Bore Size (mm) 8.38mm & 11.43mm

• Drive Type 6 & 8 tooth ratchet, 8 tab tooth
